Step 9, Power Supply: Capacitors, Zener Diodes, Fuses

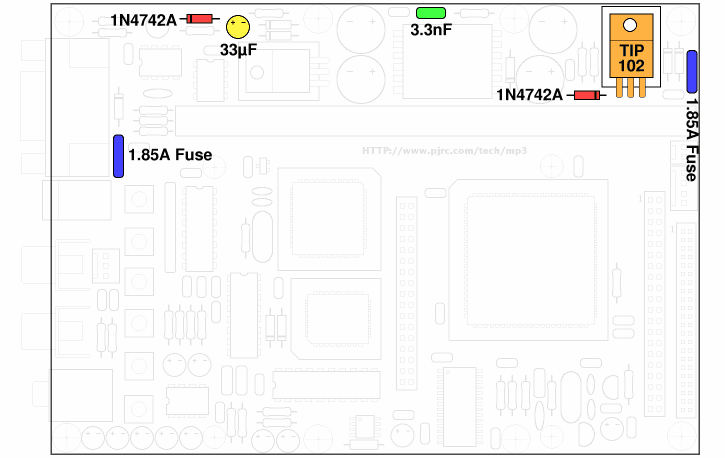

Parts Placement Illustration, Step 9

Step 9, Component List

QuantityColorComponents
2Red Diode, 1N4742A, 12 Volt Zener
2Blue Fuse, 1.85, Self Resetting PTC
1Green Capacitor, 3.3 nF, Marked "332"
1YellowCapacitor, 33 µF, Low-ESR
1OrangeTransistor, TIP102, NPN Power Darlington

Step 9, Notes

Hi-Res Images Available

These eleven assembly diagrams are also available as high resolution TIFF files that will look better when printed.


MP3 Player Kit, Assembly Instructions, Paul Stoffregen.
