State Register for Control State Machine

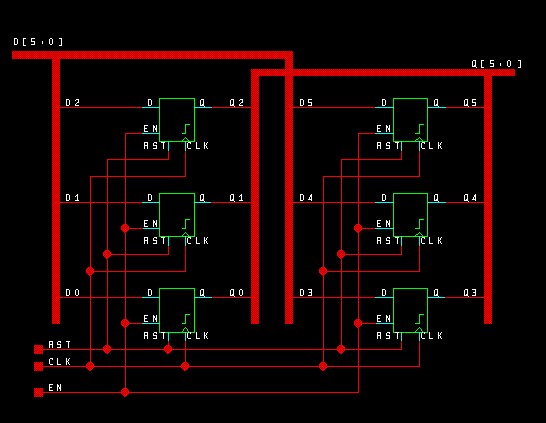

This 6-bit register holds the control state machine's state. It connects to the STATE and NEXT_STATE signals of the control logic.

Schematic Drawing

OSU8: Simple 8-Bit Microprocessor Design; Paul Stoffregen
http://www.pjrc.com/tech/osu8/sch/reg6a.html
